LPDC0101-Single- ( ONE) Manipulator Automated Industrial Machinery
for Brass Faucets / Sanitary Fittings
1- Manipulator Automatic LOW PRESSURE DIE CASTING MACHINE
Low Pressure Die Casting machine stands out for its high
productivity and its easy operation & maintenance
features. It is an ideal selection for manufacturers who are in
pursuit of high-quality casting surfaces for faucets and
sanitary fittings. It is more suitable for the complicated design
of products.
The LPDC0101 model-Low pressure die-casting machine is available
for lead-free brass production
Technical Advantages
1. High stability, easy operation, and low maintenance
1.1 It is designed with a fully automatic casting procedure which
has an intelligent operation and control program:
- It is available for storing effective injection parameters like
furnace temperature, mold temperature, graphite
bath’s temperature, the capacity per shift, the total running time
of the machine, filling & casting pressures, hydraulic
pressure etc.
- Available for remote control and diagnosis
- Simens PLC + IPC modules ( UPS for option)
1.2 The Main Electrical enclosure is cooled by A/C, the electrical
cabinet has excellent sealing parts for better cooling
guarantee.
- 1.3 Famous brands for electrical, pneumatic, and hydraulic parts
are used and provide the spare parts along with
machine for quick repair and maintenance. Available for their continuous supplies in the future
2. Lower Production Cost
2.1 Labor cost is reduced: 1 operator
2.2 Energy cost is saved: 1 set induction furnace fully electric
without the need for additional fuel.
Melting capacity: 350kg/hr -105KW
Technical Parameters
| Code | TECHNICAL DESCRIPTION | Model:LPDC0101 |
| 1 | External Size: L*W*H (mm) | 5000*4600*3400 |
| 2 | Power Rate (KW) | 125 |
| 3 | Operating Voltage (V) | 380 |
| 4 | Qty. of Manipulator (sets) | 1 |
| 5 | Max. Die Mould Weight (KG) | 180 |
| 6 | Max. Die Mould Dimensions(mm) | 550*400*250 |
| 7 | Power of Electric Furnace(KW) | 3*35 |
| 8 | Furnace Melting Capacity (kg/hr) | 350 |
| 9 | Qty. of Furnace (set) | 1 |
| 10 | Qty. of Mould Cleaning Bin (set) | 1 |
| 11 | Qty. of Feeder (sets) | 1 |
| 12 | Qty. of Grahite Bath (set) | 1 |
| 13 | Qty. of Crane (set) | 1 |
| 14 | Max. Loading of Crane (KG) | 500 |
| 15 | Qty. of Tube (pieces) | 3 |
| 16 | Gas Pressure (KG) | 6 |
| 17 | Water Pressure(KG) | 3 |
| 18 | Max.Temp. of Furnace (℃) | 1250 |
| 19 | Temp.of Cooling Water(℃) | 20±2 |
| 20 | Max. Speed of Manipulator | 20 meters/min. |
| 21 | Max. Clamping Stroke of Mould (mm) | 370 |
| 22 | Angle Range of Mould Soaking (°) | 0~90 |
| 23 | Pressure of Thimble (KG) | 540 |
| 24 | Stroke of Thimble (mm) | 50 |
| 25 | Pressure of Casting (Bar) | 50~1200 |
Key Components

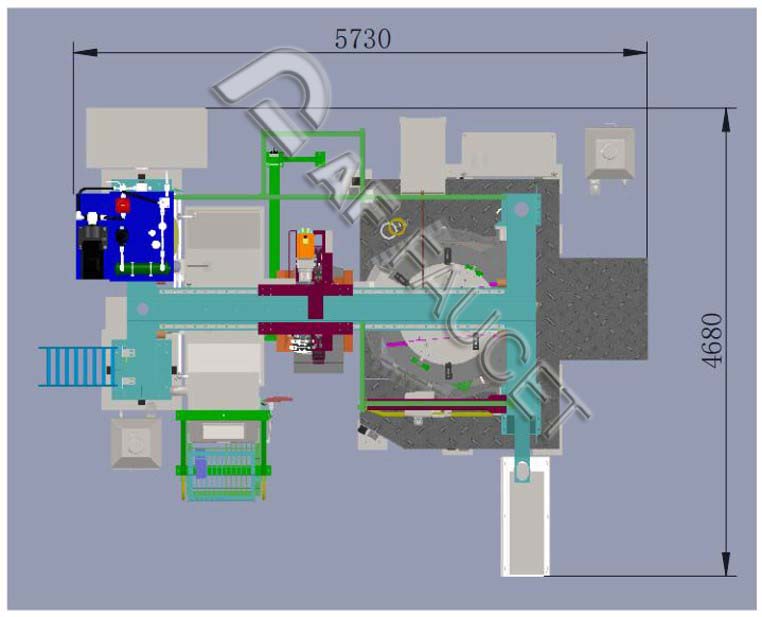

Machine Layout
