70dB Robotic Grinder Automatic Brushing MachineHybrid Grinding And Brushing Equipment

RTAF-GB0101-Hybrid Grinding And Brushing Equipment- 1 Robotic Grinder + 1 Automatic Brushing Unit

This system is designed with 1 robotic cell of sand grinder and 1 unit of automatic brushing unit, which can makes the finished brushing surface treatment for Nickel electroplated products. The robot grinder is designed with a full-floating control module making it more flexible for all sides of grinding.

Technical Specifications

1 robot: 1 grinder + 1 automatic brushing unit ( hairline drawing)
Model	RTAF-GB0101
Machine Layout LWH (mm)	320028002300
Total N.W.	2000kgs
Robot Model	Fanuc M-20iD/25kg
Qty. Of Robot	1 set
Dust-Proof House	None, available
Sand Grinding Units	1 ( 2 stations)
Automatic Brushing (Hairline drawing) Unit	1 set
Loading/Unloading Table	1 set( double-station )
Total Power Consumption Max.	12 KW

Main Features

1. Automatic tension adjustment for sand grinding belt

2. Automatic deviation correction and adjustment for sand grinding belt

3. Automatic wax injection for the fine polishing procedure

4. Automatic compensation for rotary motor speed

5. Multi-stages rotary speed programming

6. Full range of buffering/floating for contact wheels

7. Loading/unloading detection performance

8. The automatic brushing station is designed with an auto-compensation function for brushing wheels

9. Applied to small-size products sand grinding, and brushing processes until electroplating post-treatment

Operation and Control System

Teach Pendant and Program Pages

1. Easy Operation

2. Easy Writing and Modify Program
3. Designed with an EMERGENCY EMERGENCY STOP BUTTON u

Design Advantages

Flexible,
Stable quality,
High productivity,
Less production cost,
Safer

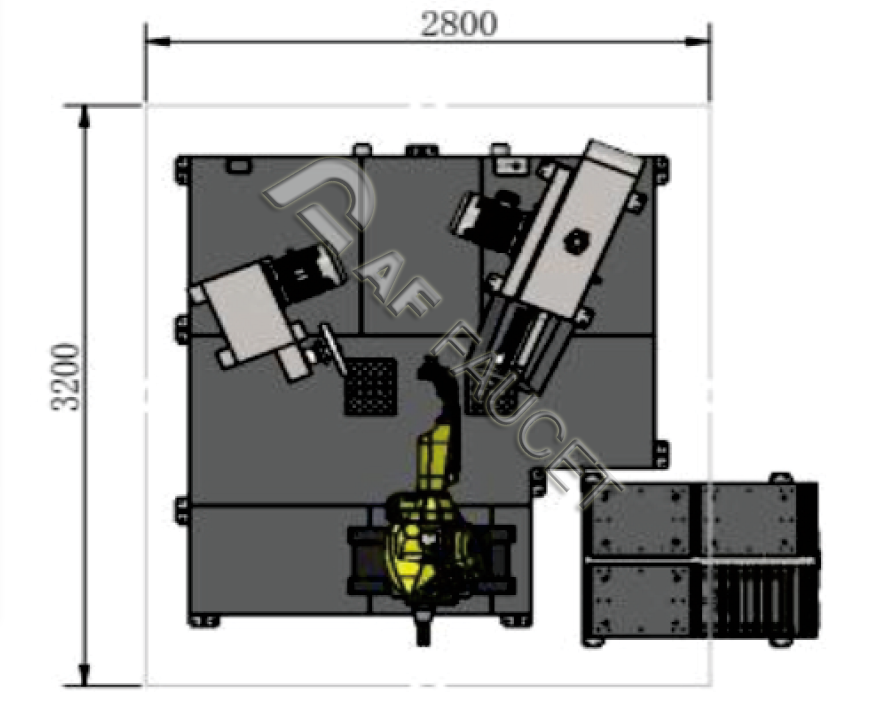

Layout - Key configurations

We provide you not only the grinding and brushing equipment but know how to transfer the technology, professional training, and technical support for machine operation, and program writing. Please contact us today for a FREE consult.
