RTAF-AG0206- 50kg Robot Grinding Machine For Large Size Brass Faucet

Ask Lasest Price
Brand Name :	royal
Model Number :	RTAF-AG0206
Certification :	ISO
Price :	negotiable
Payment Terms :	L/C, T/T
Supply Ability :	30 sets / month
Delivery Time :	8 weeks

Add to Cart

Product Details
Company Profile

RTAF-AG0206- 50kg Robot Grinding Machine For Large Size Brass Faucet

RTAF-AG0206-Robot Grinding Machine For Large Size Brass Faucet

This robot cell automatic grinding system is exclusively designed for large faucet grinding and polishing. Available for zinc alloy, brass alloy, and stainless steel materials.

It is designed with a full-floating control module makes it more flexible for all sides of grinding. Three stations are designed on each grinder to satisfy different polishing demands from high to low roughness sand belt ranges. Please consult us for more information.

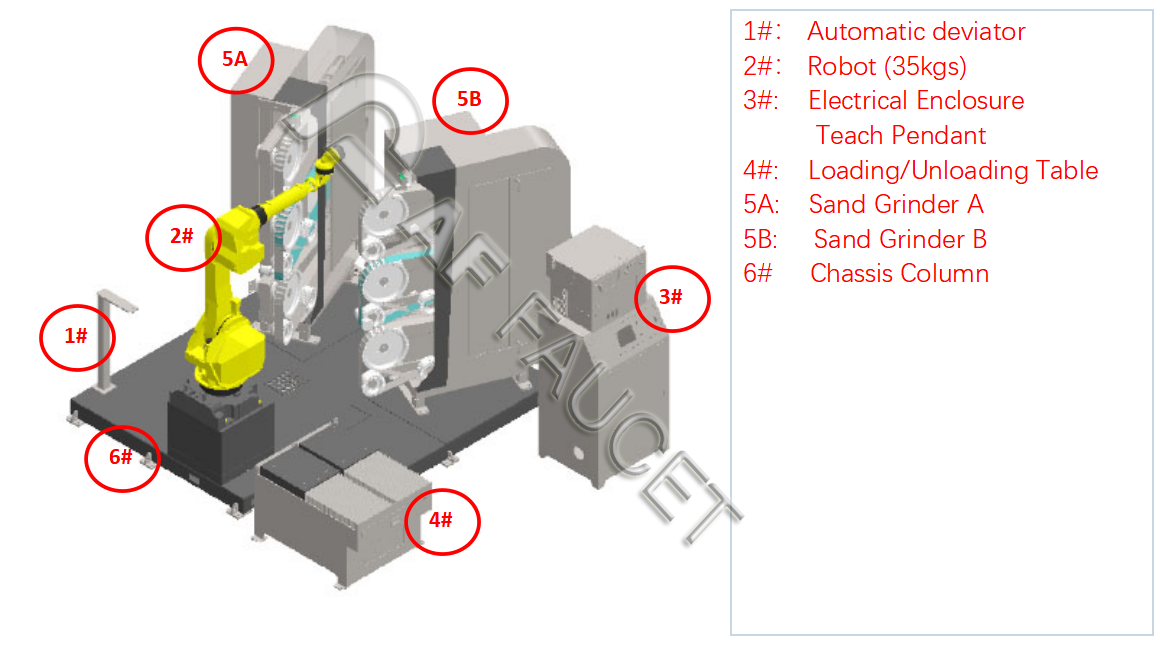

Machine Key Configurations

Technical Specifications

Robotic Grinding Machine For Large Brass Faucets
Model	RTAF-AG0206
Machine Layout LWH (mm)	390032002300
Total N.W.	3000kgs
Robot Model	Fanuc M-710iC/50kg
Qty. Of Robot	1 set
Dust-Proof House	None, available
Sand Grinding Units	2 ( 6 stations)
Loading/Unloading Table	1 set( double-station )
Total Power Consumption Max.	20 KW

Technical Advantages

1. Automatic tension adjustment for sand grinding belt

2. Automatic deviation correction and adjustment for sand grinding belt

3. Automatic wax injection for the fine polishing procedure

4. Automatic compensation for motor rotary speed

5. Multi-stage rotary speed programming

6. Full range of buffering/floating for contact wheels

7. Loading/unloading detection performance

8. Applied to large faucet’s grinding and polishing processes

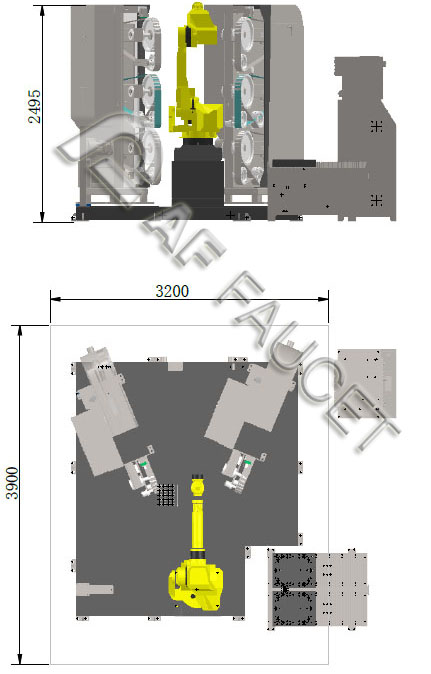

Machine Layout

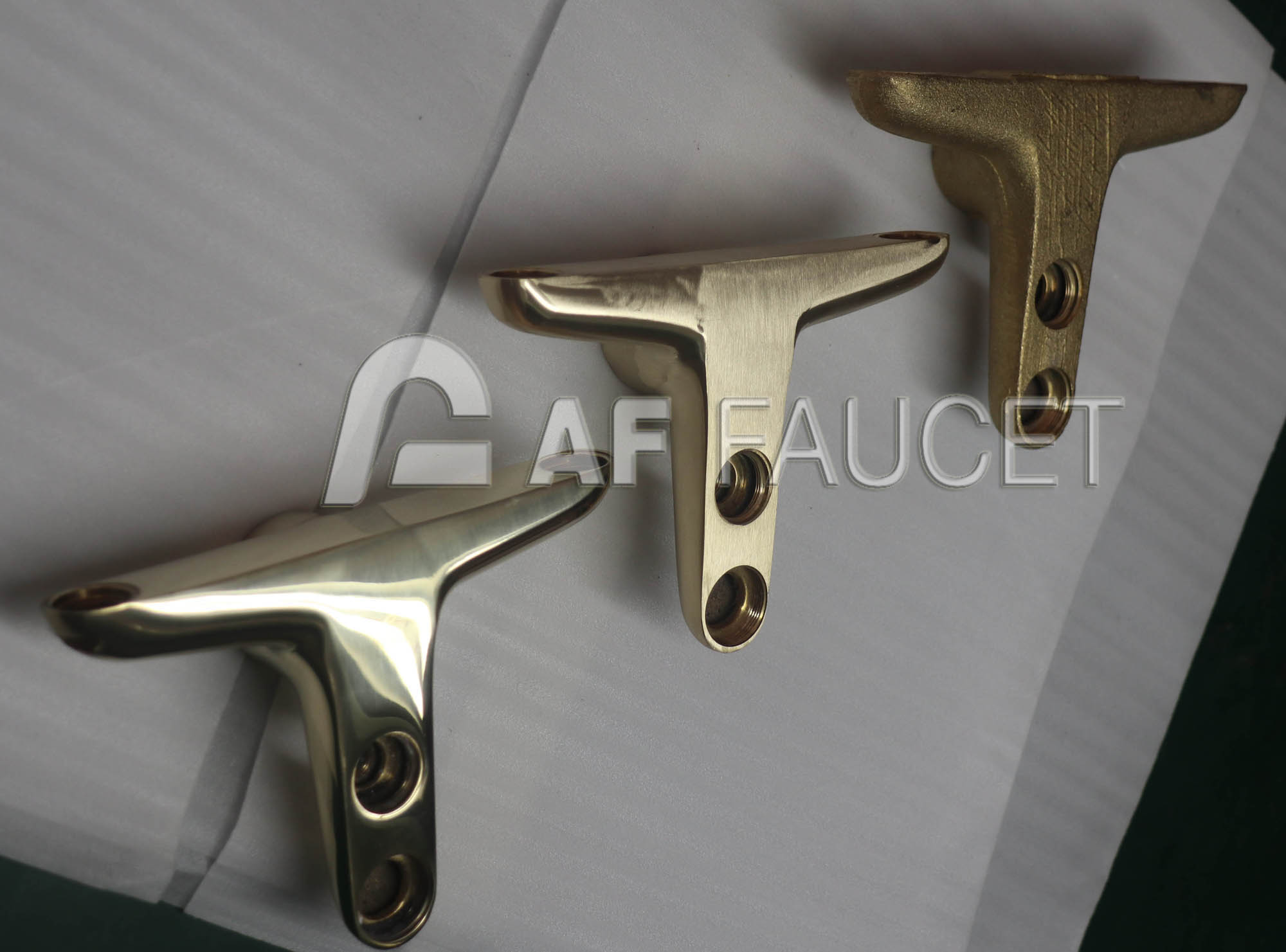

Samples --- grinding + polishing

We provide you not only the automatic grinding equipment but know how to transfer the technology, professional training, and technical support for machine operation, and program writing. Please contact us today for a FREE consult.
