RTAF-AG0204M- Robot Grinding Machine For Medium Size Sanitaryware Brass Headshower

Ask Lasest Price
Brand Name :	royal
Model Number :	RTAF-AG0204M
Certification :	ISO
Price :	negotiable
Payment Terms :	L/C, T/T
Supply Ability :	30 sets / month
Delivery Time :	8 weeks

Add to Cart

Product Details
Company Profile

RTAF-AG0204M- Robot Grinding Machine For Medium Size Sanitaryware Brass Headshower

RTAF-AG0204M- Robot Grinding Machine For Medium Size sanitaryware, brass headshower

It is designed with a full-floating control module makes it more flexible for all sides of grinding. Dual stations are designed on each grinder to satisfy different polishing demands from high to low roughness sand belt ranges.

This robot cell automatic grinding system is exclusively designed for Large size faucet’s sand belt grinding.

Available for zinc alloy, brass alloy, and stainless steel materials.

Please consult us for more information.

Layout

Technical Specifications

Robotic Grinding Machine For Small & Medium Size Brass Faucets
Model	RTAF-AG0204
Machine Layout LWH (mm)	370031002300
Total N.W.	2500kgs
Robot Model	Fanuc M-20iD/25kg
Qty. Of Robot	1 set
Dust-Proof House	None, available
Sand Grinding Units	2 (4 stations)
Loading/Unloading Table	1 set( double-station )
Total Power Consumption Max.	14 KW

Technical Advantages

1. Automatic tension adjustment for sand grinding belt

2. Automatic deviation correction and adjustment for sand grinding belt

3. Automatic wax injection for the fine polishing procedure

4. Automatic compensation for motor rotary speed

5. Multi-stage rotary speed programming

6. Full range of buffering/floating for contact wheels

7. Loading/unloading detection performance

8. Applied to medium and small size faucet’s grinding and polishing processes ( products are with peeling pretreatment)

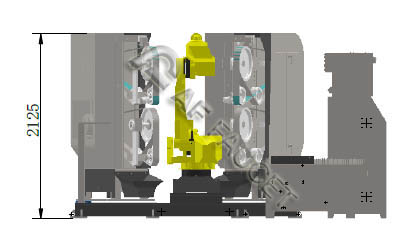

Machine Layout

Samples --- grinding + polishing

We provide you not only the automatic grinding equipment but know how to transfer the technology, professional training, and technical support for machine operation, and program writing. Please contact us today for a FREE consult.
