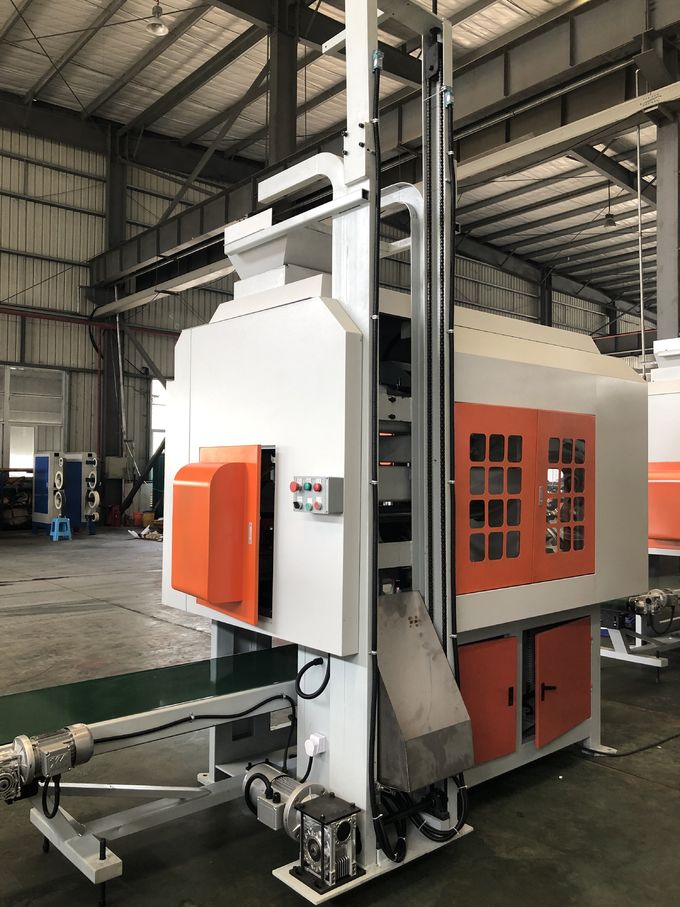

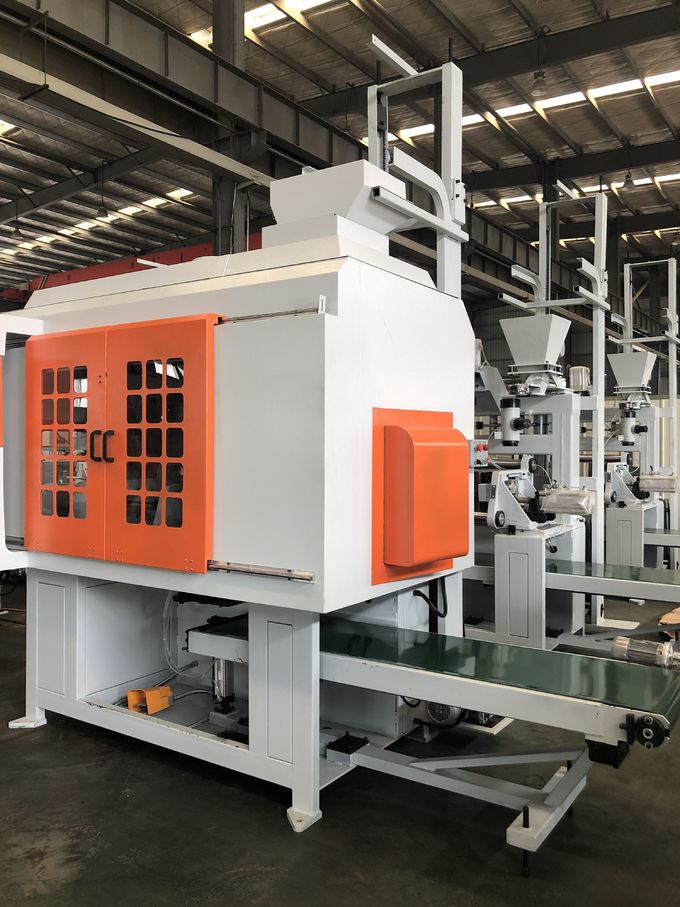

Metal Casting Sand Core Shooting Machine For Bathroom Faucet
Product Description
Professional Sand Core Shooting Machine for Metal Casting
Bathorooom Production Faucet
Ⅰ FEATURE
1. human-machine interface and imported high-quality electronic
control and pneumatic components/hydraulic device to ensure
accurate and reliable control and easy operation.
2. there are three modes: manual, single action, and automatic.
3. the shooting port is 70 degrees to the sand, away from the
high-temperature area, so that the perforation is easy to clean
manually.
4. The machine is equipped with an integral moving mechanism of the
base, which can make the base move along the X and Y axes so that
the perforation of the opposite mold into the sand hole is more
convenient and accurate.

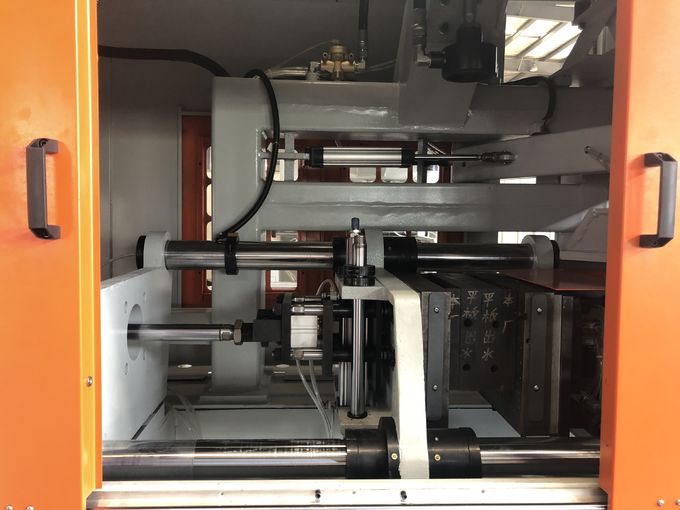

5. The movable die is equipped with the core pulling rack to meet
the special requirements of the mold.
6. The angle of the quicksand in the sand storage bucket reaches 70
degrees and is equipped with a vibrating motor. It is suitable for
the use of collapsible core sand with poor fluidity in the copper
casting and aluminum industry.
7. With mold adjustment space, it is convenient to assemble
different molds and reduce the requirements for the die size.
Ⅱ TECHNICAL PARAMETERS
| Code | Item | Specification |
| 1 | Max. Weight of Sand Core | 8kg |
| 2 | Max. Size of Core Box ( L x W x H) | (450*330*220)mm |
| 3 | Heating Plate ( L x W) | (400*300)mm |
| 4 | Heating Power | 9.6kw |
| 5 | Downward Stroke of Ejection Head | ≤30mm |
| 6 | Stroke of Mold Opening | ≤300mm |
| 7 | Max. Stroke of Core Remove | 150mm |
| 8 | Conveyor ( L x W x H) | (2200*450*100)mm |
| 9 | Total Power | 13.2kw |
| 10 | Rising Angle of Conveyor | 2°~4° |
| 11 | Speed of Transportation | 72mm/s |
| 12 | Machine Size ( L x W x H) | (3500*1480*3400)mm |
| 13 | Speed of Lift (Single Time) | 35s |
| 14 | Weight of Lift ( Single Time) | 10kg |
| 15 | Total Weight | 2000kg |
| 16 | Hydraulic pressure | 50Kg/cm² |
